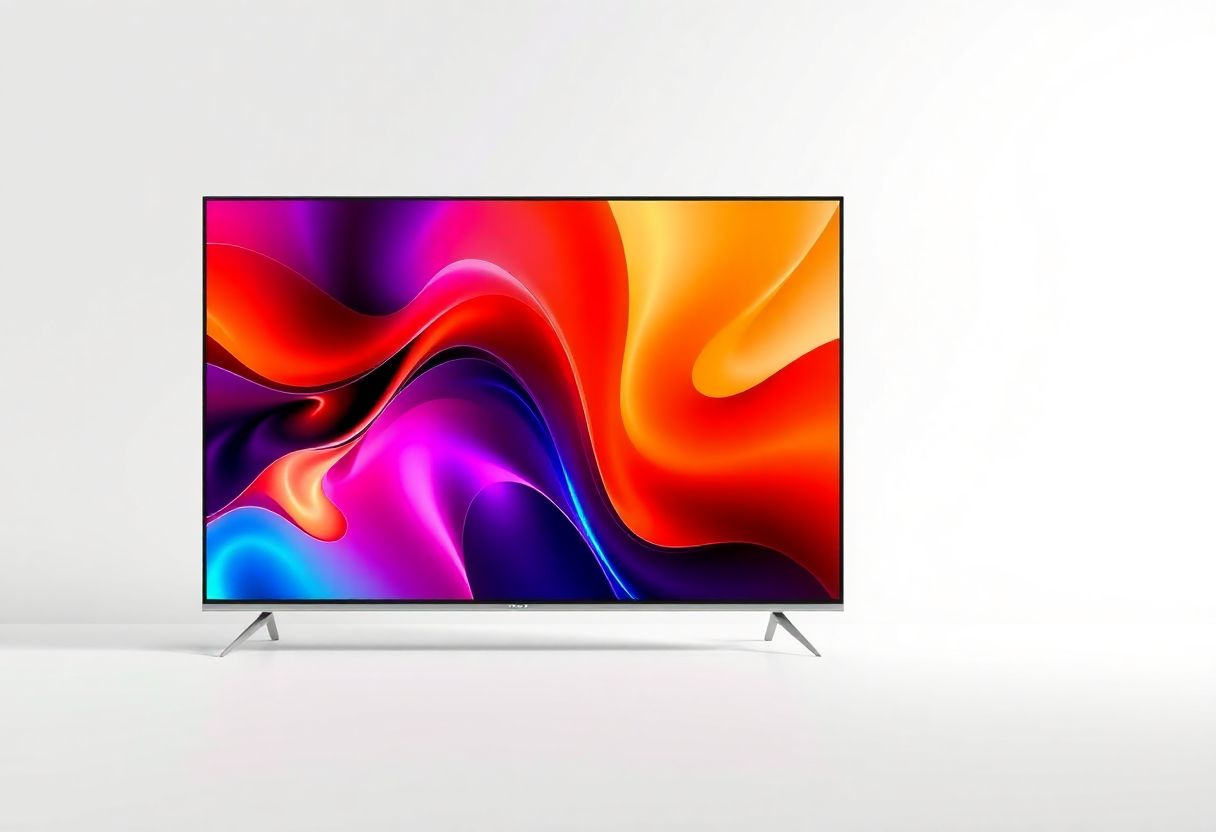

The Incredible World of LCD TVs: How They Work and Why They Matter

Introduction: The LCD Revolution

In the realm of display technology, few innovations have had as profound an impact as the Liquid Crystal Display (LCD). From the humble beginnings of calculator screens to the expansive, crystal-clear televisions adorning our living rooms, LCD technology has fundamentally transformed our visual experiences. This article delves deep into the fascinating world of LCD TVs, exploring the intricate science behind their operation, their evolution, and their significance in our modern, screen-centric world.

The Journey from CRT to LCD: A Technological Leap

To appreciate the marvel of LCD technology, we must first look back at its predecessor: the Cathode Ray Tube (CRT). Those of us old enough to remember can recall the bulky, energy-hungry behemoths that once dominated our living spaces. CRT TVs operated by firing electron beams at a phosphor-coated screen, a process that, while revolutionary for its time, was inefficient and limited in terms of screen size and quality.

The transition from CRT to LCD marked a quantum leap in display technology. Suddenly, televisions could be slim, lightweight, and energy-efficient. The ability to hang a large screen on a wall like a painting was no longer a futuristic concept but a widely available reality. This shift not only changed the aesthetics of our homes but also opened up new possibilities for how and where we consume visual content.

The Science of Liquid Crystals: Nature's Remarkable State of Matter

At the heart of LCD technology lies a fascinating state of matter: liquid crystals. Discovered in 1888 by Austrian botanist Friedrich Reinitzer, liquid crystals exist in a liminal state between solid and liquid. They possess the flow properties of liquids while maintaining some of the structural order characteristic of solids.

To visualize this unique state, imagine a bowl of cooked spaghetti. The noodles can slide past each other and flow around the bowl, much like a liquid. However, they also tend to align in the same general direction, exhibiting a degree of order similar to solids. This analogy helps us understand the nematic phase of liquid crystals, which is crucial for LCD operation.

The ability of liquid crystals to be influenced by electric fields while maintaining some structural integrity is what makes them ideal for use in displays. This property allows for precise control over light transmission, forming the basis of LCD technology.

The Magic of Polarized Light: A Key to Understanding LCDs

To grasp how LCDs function, we need to understand the concept of polarized light. Typically, light waves vibrate in all directions perpendicular to their path of travel. Polarized light, however, vibrates in only one specific direction.

A useful analogy is to think of a jump rope. Normal light is akin to shaking the rope in all directions, while polarized light is like shaking it only up and down or only side to side. This principle is fundamental to LCD operation, as the technology relies on manipulating the polarization of light to create images.

Polarizing filters, which act like microscopic venetian blinds for light, are used in LCDs to create and manipulate polarized light. These filters only allow light waves vibrating in a specific direction to pass through, playing a crucial role in the LCD's ability to control light transmission and, consequently, image formation.

The Intricate Structure of an LCD Screen: Layers of Innovation

An LCD screen is a marvel of engineering, comprising several carefully designed layers that work in concert to produce the images we see. Let's explore these layers in detail:

Backlight: At the rear of the screen, a bright light source provides illumination for the entire display. Modern LCDs often use LED backlighting for improved energy efficiency and color accuracy.
First Polarizing Filter: As light from the backlight passes through this filter, it becomes polarized, with all light waves aligned in one direction.
Liquid Crystal Layer: This is where the magic happens. Each pixel has its own section of liquid crystals that can be electrically controlled.
Color Filters: For color displays, each pixel is divided into three subpixels (red, green, and blue), each with its own color filter.
Second Polarizing Filter: This filter is oriented at 90 degrees to the first. Its interaction with the liquid crystal layer determines whether light passes through or is blocked.
Outer Glass or Plastic Layer: This protective layer shields the internal components and provides a surface for touch functionality in some models.

The Pixel-by-Pixel Process: How LCDs Create Images

The process of creating an image on an LCD screen is a fascinating interplay of light, electricity, and molecular manipulation. Here's a step-by-step breakdown of how it works:

Backlighting: The process begins with the backlight, which provides a uniform source of illumination for the entire screen.
First Polarization: As light passes through the first polarizing filter, all light waves are aligned in one direction.
Liquid Crystal Manipulation: Each pixel's liquid crystal section can be electrically controlled. When no voltage is applied, the liquid crystals are arranged in a twisted structure.
Light Rotation: The twisted structure of the liquid crystals rotates the polarized light by 90 degrees.
Second Polarization: The second polarizing filter is oriented at 90 degrees to the first. If the light has been rotated by the liquid crystals, it passes through, creating a bright pixel. If not, it's blocked, creating a dark pixel.
Color Production: For color displays, each pixel is divided into red, green, and blue subpixels. By varying the intensity of each subpixel, a wide range of colors can be produced.
Brightness Control: By adjusting the voltage applied to the liquid crystals, the amount of light that passes through can be controlled, creating various levels of brightness for each subpixel.

This process occurs simultaneously across millions of pixels, refreshing many times per second to create the moving images we see on our screens.

The Role of Transistors: The Unsung Heroes of LCD Technology

Each pixel in an LCD is controlled by its own transistor, a tiny electronic switch that rapidly turns pixels on and off. These transistors are crucial in controlling the image displayed on the screen, which is why you might hear the term "TFT LCD" – Thin-Film Transistor Liquid Crystal Display.

The use of transistors allows for precise control over each pixel, enabling the creation of sharp, high-resolution images. Modern LCD TVs contain millions of these transistors, each working in harmony to produce the pictures we see.

Color Production in LCD TVs: A Symphony of Red, Green, and Blue

LCD TVs create color through a sophisticated combination of red, green, and blue (RGB) subpixels. Each pixel on your screen is actually composed of these three colored subpixels. By varying the intensity of each subpixel, a wide range of colors can be produced.

For example, to create yellow, the red and green subpixels are illuminated while the blue remains dark. This process, known as additive color mixing, allows LCD TVs to reproduce a vast spectrum of colors.

The number of distinct colors a screen can produce is referred to as its color depth. Most modern LCD TVs offer at least 8-bit color depth, which can produce 256 shades per color channel, totaling over 16 million colors. High-end displays may offer 10-bit or even 12-bit color depth for even more nuanced color reproduction, potentially displaying billions of colors.

Advancements in LCD Technology: Pushing the Boundaries

As with any technology, LCD has seen continuous improvement since its inception. Several key advancements have significantly enhanced the performance of LCD TVs:

IPS vs. VA vs. TN Panels

Different types of LCD panels offer varying performance characteristics:

IPS (In-Plane Switching) panels offer better color accuracy and wider viewing angles, making them ideal for applications where image quality is paramount.
VA (Vertical Alignment) panels provide higher contrast ratios and deeper blacks, making them popular for home theater setups.
TN (Twisted Nematic) panels offer the fastest response times, making them suitable for gaming, but they have limited color accuracy and narrow viewing angles.

Local Dimming: Enhancing Contrast

To improve contrast and black levels, many LCD TVs employ local dimming technology. In this technique, the backlight is divided into zones that can be independently dimmed or brightened. This allows for darker blacks in parts of the image while maintaining brightness in others, resulting in a more dynamic and visually appealing picture.

Quantum Dots: A Quantum Leap in Color

Some high-end LCD TVs incorporate quantum dot technology, which represents a significant advancement in color reproduction. Quantum dots are tiny semiconductor particles that emit very pure, specific colors when excited by light. This technology allows for a wider color gamut and more vibrant images, bringing LCD performance closer to that of OLED displays.

LCD vs. OLED: A Comparison of Display Technologies

While LCD technology dominates the market, OLED (Organic Light-Emitting Diode) displays have gained popularity in recent years. Both technologies have their strengths and weaknesses:

LCD Pros:

Brighter displays, ideal for well-lit environments
Generally less expensive
No risk of burn-in

LCD Cons:

Lower contrast ratios compared to OLED
Less perfect blacks due to backlight bleed

OLED Pros:

Perfect blacks and infinite contrast ratio
Wide viewing angles
Faster response times

OLED Cons:

Potential for burn-in with static images
Lower peak brightness compared to high-end LCDs
More expensive, especially in larger sizes

The Environmental Impact of LCD Technology

While LCD TVs are significantly more energy-efficient than their CRT predecessors, the production and disposal of LCD screens present environmental challenges that shouldn't be overlooked.

Energy Efficiency

A typical 55-inch LCD TV might consume around 100 watts during operation, compared to 300 watts or more for an equivalent CRT TV. This increased efficiency translates to lower electricity bills and reduced carbon emissions over the lifetime of the device.

Manufacturing and Disposal Concerns

The production of LCD screens requires rare earth elements and other resources, the mining and processing of which can have significant environmental impacts. Additionally, the proper recycling of LCD screens is crucial to prevent environmental contamination from materials like mercury, which is used in some backlighting systems.

As consumers and manufacturers become more environmentally conscious, efforts are being made to develop more sustainable production methods and improve recycling processes for LCD screens.

The Future of Display Technology: What Lies Ahead

As technology continues to advance, we're seeing exciting developments in display technology that may shape the future of our visual experiences:

MicroLED displays promise to combine the best aspects of LCD and OLED, offering perfect blacks, high brightness, and long lifespan without the risk of burn-in.
Flexible and rollable displays are becoming a reality, opening up new possibilities for device form factors and user interactions.
Advancements in quantum dot technology continue to improve LCD performance, pushing the boundaries of color reproduction and energy efficiency.

Conclusion: The Enduring Legacy of LCD Technology

LCD technology has come a long way since its inception, revolutionizing not just televisions but a wide array of electronic displays. From the basic principles of liquid crystals and polarized light to the complex systems that create the vivid images we see on our screens, LCDs represent a remarkable feat of scientific and engineering ingenuity.

As we look to the future, it's exciting to consider how display technology will continue to evolve. Will quantum dots or microLEDs become the new standard? Or will entirely new technologies emerge to change the way we view digital content?

One thing is certain: our quest for better, more efficient, and more immersive visual experiences will continue to drive innovation in display technology. The humble LCD has already transformed our world, and its legacy will undoubtedly influence the screens of tomorrow, shaping how we interact with information, entertainment, and each other in the digital age.
